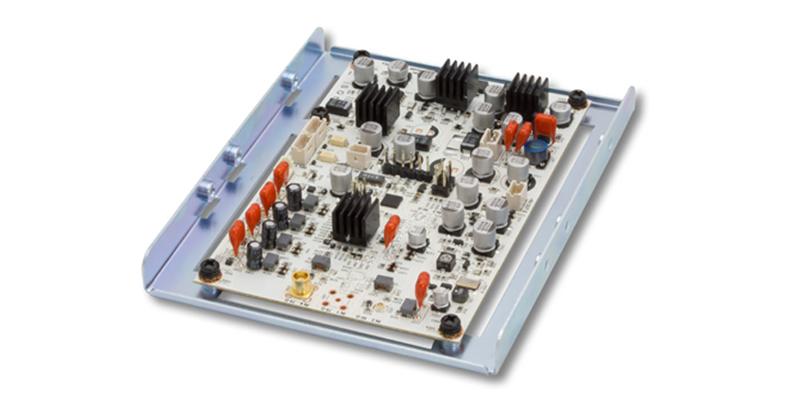

tX-USBexp USB 3.0 Interface Card
SOtM tX-USBexp is a PCI express USB 3.0 host interface card designed to perform the ultimate USB audio functions.
If you want to use a PC as a hi-end audio source device via a USB connection, the unit will block the various types of noise coming from the inside of the digital devices. The tX-USBexp uses special filter circuits, an ultra low-noise voltage regulator and an ultra-low jitter clock.
This unit creates an amazing USB audio performance.
Key Features:
PCIe USB 3.0 host interface card
Ultimate audio performance
External power input
USB port power on/off
Technical Specifications
- PCIe USB 3.0 host interface card
- Ultimate audio performance
- External power input
- USB port power on/off
PCI express USB interface chip set
USB 3.0 Compliant xHCI host controller
Support SS(5Gbps),HS(480 Mbps),FS (12 Mbps),LS (1.5 Mbps)
PCIe x1 Gen2 interface
Internal power input
Input voltage : +12.0V(+0.5V, -0.5V)
Input current : 2A
4pin IDE power connector
External power input
Input voltage : +6.5V ~ +9Vdc
Input current : 2A max
5.5mm OD, 2.1mm ID DC adaptor jack
USB port output power
Output voltage : +5.0V(+0.5V, -0.25V)
Over current protection : 1.5A at 20°C
Recommend output current : 0.5A >
Operating environment
Operating temperature : 0°C ~ 30°C
Storage temperature : -10°C ~ 50°C
Operating & storage humidity : 10% ~ 90%
OS support
Windows 7 or higher version
Linux
