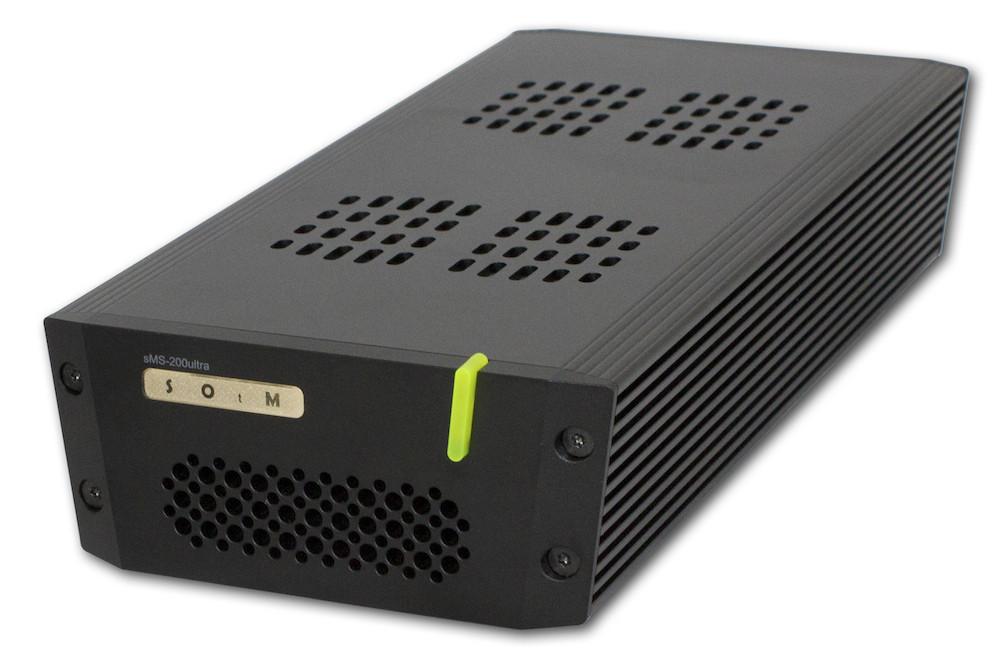

sMS-200ultra Neo network player
About the sMS-200ultra
The sMS-200ultra is an upgraded network player equipped with a dedicated media player board and a high performance audio clock, born from SOtM's years of experience.
Improving upon the great reviews and user feedback on the sMS-200, the sMS-200ultra has been designed to include the sCLK-EX clock — the heart of this superior digital audio equipment. This new combination brings dramatic sound improvement. If you’ve been enjoying the great performance of the sMS-200, the addition of the sCLK-EX will enhance your experience beyond the usual sound limitations of traditional small source devices.
Use the master clock connector option to sync the sMS-200ultra with an external master clock device such as a Rubidium clock. This feature has the potential to redefine your perception of sound from small network players.
The sMS-200ultra is a digital technology device but, because it is based on SOtM’s deep understanding of analog technology, it can be defined as one of the few high-performance digital audio devices that performs superior analog sound.
With cutting edge technology providing the newly adapted heart to the sMS-200, the sMS-200ultra is born. Impress yourself with truly beautiful music.
Specifications
Audio player
Roon Ready
DLNA renderer
Music Player Daemon(MPD)
Logitech Media Server(LMS)
Squeezelite
HQplayer
Shairport
Audio feature
PCM 32bit/768KHz max, DSDx512 max
Ultra Low Noise Regulator
Active Noise canceller
USB port
High-End audio grade USB port x 1
USB 2.0 port x 2
Output voltage : +5.0V(+0.5V, -0.25V)
Over current protection : 0.8A at 20°C
Recommend output current : 0.5A >
Ethernet port
RJ45 Gigabit Ethernet
External power input
Input voltage : +6.5V ~ +9Vdc(Optional 12.0Vdc)
Input current : 2A max
5.5mm OD, 2.1mm ID adaptor jack
Internal reference clock
sCLK-EX2425 board
External master clock input : Optional
Input frequency : 10MHz
Isolated clock input
50Ω BNC connector x 1
Operating environment
Operating temperature range: +10 ~ +30℃
Storage temperature : 0 ~ +40℃
Operating & storage humidity : 10% ~ 90%
Dimension
106 x 48 x 227(mm)
Weight
1.5Kg >
