dX-USB HD Mod with sCLK-EX
The SOtM dX-USB HD is a high performance DDC that will upgrade the sound from your PC. The dX-USB HD converts the maximum 24bit/192Khz signal to high quality AES/EBU, coaxial, optical output through the USB connection. It is designed by USB audio class 2.0 asynchronous interface.
Consider pairing with the mBPS-d2s intelligent battery power supply for even better quality sound.
-
24/192 USB interface
-
Asynchronous clock mode
-
Bit-transparent operation
-
USB power operation
-
External power operation
-

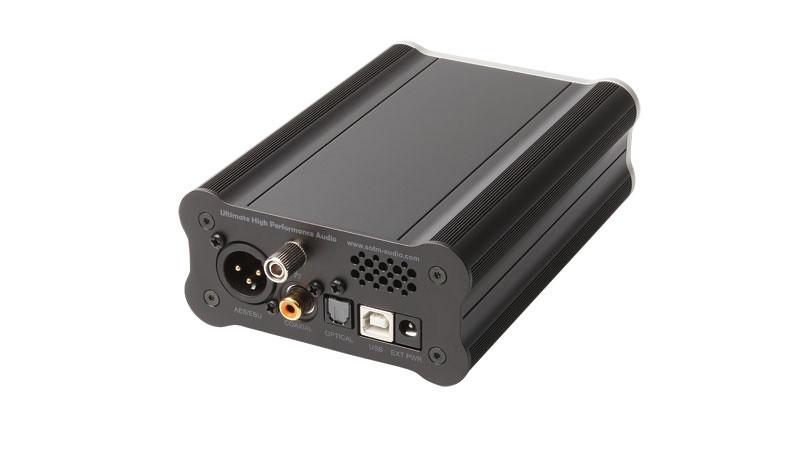

AES/EBU,Coaxial,Optical output
-
sCLK-2224 option
USB input
USB 2.0 high speed/USB audio class 2.0
44.1/48/88.2/96/176.4/192KHz sampling rate
Max 24bit PCM audio data
Coaxial output
Output impedance : 75 ohm
Minimum output voltage : 0.5Vpp
44.1/48/88.2/96/176.4/192KHz sampling rate
Max 24bit PCM audio data
Optical output
Maximum data rate : 12.8Mbps(NRZ code)
Output power range : -21dBm~-15dBm
Peak emission wavelength : 650nm
44.1/48/88.2/96/176.4/192KHz sampling rate
Max 24bit PCM audio data
AES/EBU output
Output impedance : 110 ohm
Minimum output voltage : 2Vpp
44.1/48/88.2/96/176.4/192KHz sampling rate
Max 24bit PCM audio data
Sampling rate auto detect and display
Asynchronous mode operation
Bit-transparent operation
Windows OS/Linux/MAC OS-X

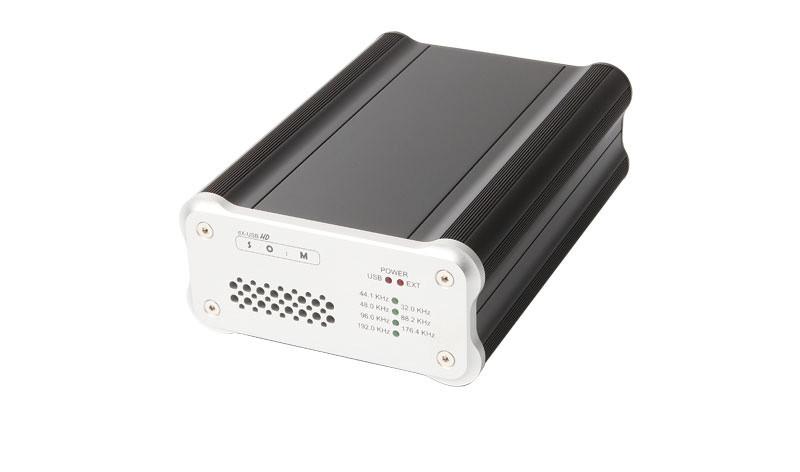

Indicate LED
Power source x 2
Sampling rate x 4
Power Requirement
USB power : +5Vdc
External power range : +7Vdc ~ +9.0Vdc
Power : 500mA>
Power Regulation circuit
Ultra low noise regulator circuit
USB power only operating
External power input connector for external power supply
Automatic power source switching
Dimension / Weight
105x53x150(mm) / 1Kg>
