sCLK-EX  Clock Board

sCLK-EX Clock Board

Regular price $700.00

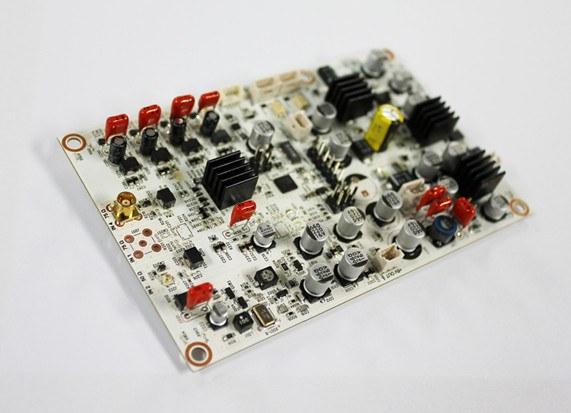

The new clock board is available to output 4 points, so it could be connected to M/B, Lan port, tX-USBexp or tX-USBhubIN and another point at the same time by “a single sCLK-EX board”. The performance and features have been very much upgraded and improved than the current clock, so it will be a worthy challenge and news for all computer audiophile users.

Also the sCLK-EX can be synchronized to the external clock, so it can be synchronized with Rubidium or Reference clock.

Key Feature

Ultra low phase noise custom design oscillation circuit

Dual clock system for dX-USB HD, iM-USB HD, sMS-1000SQ and etc : Clock select input

Single clock system for tX-USBexp, tX-USBhub and etc

Wide operating voltage input range

Ultra low noise +5V output for system operation : 0.5A max

Specification


 Internal reference clock
  Custom designed ultra low phase noise oscillation circuit
  Isolated differential clock signal distribution
Clock output
  Isolated clock output : U.FL connector x 4
  Supply matching board for connecting target board
Single clock frequency for interface system
  sCLK-EX12 : 12MHz
  sCLK-EX25 : 25MHz
  sCLK-EX48 : 48MHz
  sCLK-EX22/24 : 22.5792MHz / 24.576MHz selectable by SEL0 input
  sCLK-EX45/29 : 45.1584MHz / 49.152MHz selectable by SEL0 input
  Optional other frequency available
Dual independent clock frequency for digital audio system
  sCLK-EX1412 : 14.318MHz, 12MHz
  sCLK-EX1448 : 14.318MHz, 48MHz
  sCLK-EX1425 : 14.318MHz, 25MHz
  Optional other frequency available or selectable by SEL0, 1 input
Triple independent clock frequency for mother board & interface
  sCLK-EX142512 : 14.318MHz, 25MHz, 12MHz
  sCLK-EX142548 : 14.318MHz, 25MHz, 48MHz
  Optional other frequency available or selectable by SEL0, 1 input
Quad independent clock frequency for mother board & interface
  sCLK-EX14252612 : 14.318MHz, 25MHz, 26MHz, 12MHz
  sCLK-EX14252648 : 14.318MHz, 25MHz, 26MHz, 48MHz
  Optional other frequency available or selectable by SEL0, 1 input
Clock control input
  Isolated control input connector x 2
  Non isolated control input x 7
External master clock input : Optional
  Input frequency : 10MHz (Optional other frequency available)
  Isolated 50Ω external clock input : U.FL connector x 1
  Isolated 75Ω external clock input : MCX connector x 1
  Differential clock signal input & internal distribution
Power input
  Input Voltage : 9Vdc(Standard)
                          Optional 12Vdc
                          Optional 6.5Vdc ~ 8.5Vdc
  Operating current : 1A >
Power output
  All output use ultra low noise regulator circuit
  5V, 0.5A x 1
  3.3V, 0.5A x 1
Power regulator circuit
  Custom designed ultra low noise regulator circuit x 3
  Standard ultra low noise regulator circuit x 1
  Active noise canceler circuit
Components
  Audio grade film capacitors
  Audio grade tantalum capacitors
Operating environment
  Operating temperature range: +10 ~ +30oC
  Storage temperature : 0 ~ +40oC
  Operating & storage humidity : 10% ~ 90%
